EnvisaLink 3 Zone Multi Bypass

Information and support for EnvisaLink modules.

Moderators: EyezOnRich, GrandWizard

Post Reply
steveyezon
Posts: 3
Joined: Wed Jul 29, 2015 8:21 am

EnvisaLink 3 Zone Multi Bypass

Post by steveyezon »

Hello...loving my E3...just a quick simple question...When I am in the commands window..how do I bypass multiple zones...I can do it for one and then wait and ready for arming but can I do it for multiple zones on one command line?

Thanks..Steve.
quatchi
Posts: 37
Joined: Wed Jun 08, 2011 1:04 am

Re: EnvisaLink 3 Zone Multi Bypass

Post by quatchi »

Is your system a DSC? You can use zone 99 and it will recall the zones bypassed when it was last armed.
quatchi
Posts: 37
Joined: Wed Jun 08, 2011 1:04 am

Re: EnvisaLink 3 Zone Multi Bypass

Post by quatchi »

Also you can enter a command string if it's a DSC

Example :
To bypass zone 1, 5 and13
Enter *1010513#

Where:
*1 For bypass command
Followed by all the zones you want (2 digits)
Finish with a #
steveyezon
Posts: 3
Joined: Wed Jul 29, 2015 8:21 am

Re: EnvisaLink 3 Zone Multi Bypass

Post by steveyezon »

Hello...so from my phone I would enter that command string in the bypass and I should be good to go correct?

Thanks...Steve.
Attachments
steveyezon
Posts: 3
Joined: Wed Jul 29, 2015 8:21 am

Re: EnvisaLink 3 Zone Multi Bypass

Post by steveyezon »

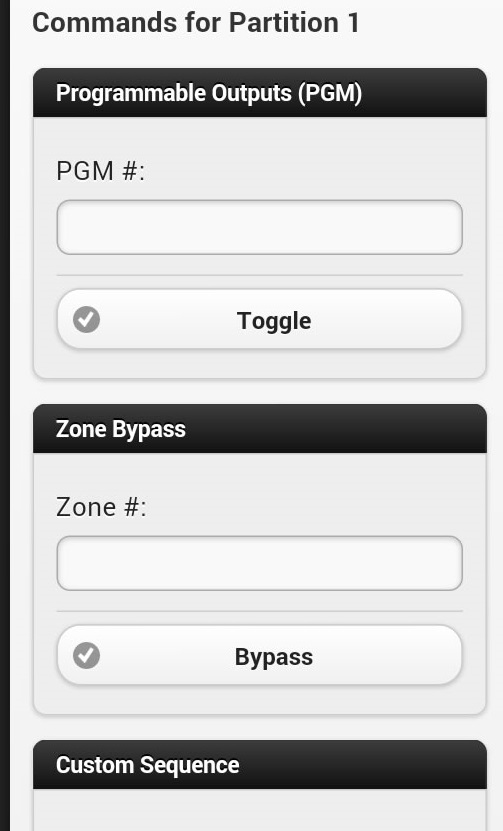

When I use the interface on the android...in the bypass field it does not accept * or # but the procedure that you mentioned works fine on the DSC keyboard.
quatchi
Posts: 37
Joined: Wed Jun 08, 2011 1:04 am

Re: EnvisaLink 3 Zone Multi Bypass

Post by quatchi »

You would enter that into the custom sequence field and not the bypass field.
