.Net EnvisaLink class and Windows Virtual Keypad app
I have created a .NET class to take away all the heavy lifting needed to interface to the EnvisaLink. In addition I have created a program used for testing the class. I put a bit more effort into it and it became a fully fledged Virtual Keypad.
I have done some testing and not run into any issues, so please let me know if you run into any issues. For now I will post just the program installable. At some point I will publish the code to github or something.
[EDIT]
Made some fixes and uploaded a new version. Note you will need to uninstall the old one to install this.
https://www.dropbox.com/s/np9friby82k70 ... p.msi?dl=0
I have done some testing and not run into any issues, so please let me know if you run into any issues. For now I will post just the program installable. At some point I will publish the code to github or something.
[EDIT]
Made some fixes and uploaded a new version. Note you will need to uninstall the old one to install this.
https://www.dropbox.com/s/np9friby82k70 ... p.msi?dl=0
Re: .Net EnvisaLink class and Windows Virtual Keypad app
Description of what this does? Screenshots? Not sure how many folks will download and install without some idea of what they are actually installing...
Re: .Net EnvisaLink class and Windows Virtual Keypad app
Here are some screen shots of the app:
Other attachments showing other views. Note that this was initially intended to be used to test the .NET class I created. However, as mentioned I ended up making a bit more effort on it to make it usable as a windows app.
The .NET class basically provides everything needed to control the ADAMCO devices.
Other attachments showing other views. Note that this was initially intended to be used to test the .NET class I created. However, as mentioned I ended up making a bit more effort on it to make it usable as a windows app.
The .NET class basically provides everything needed to control the ADAMCO devices.
- Attachments
-

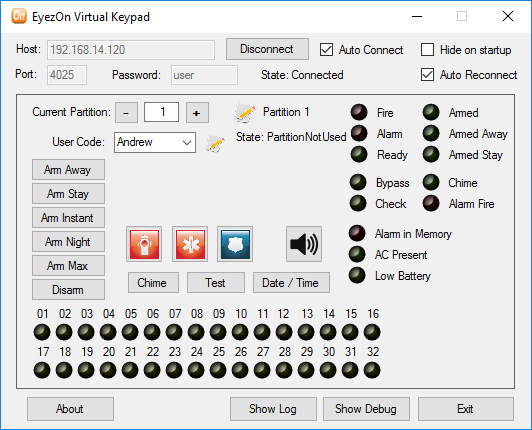

- Main window.png (34.22 KiB) Viewed 17450 times
-

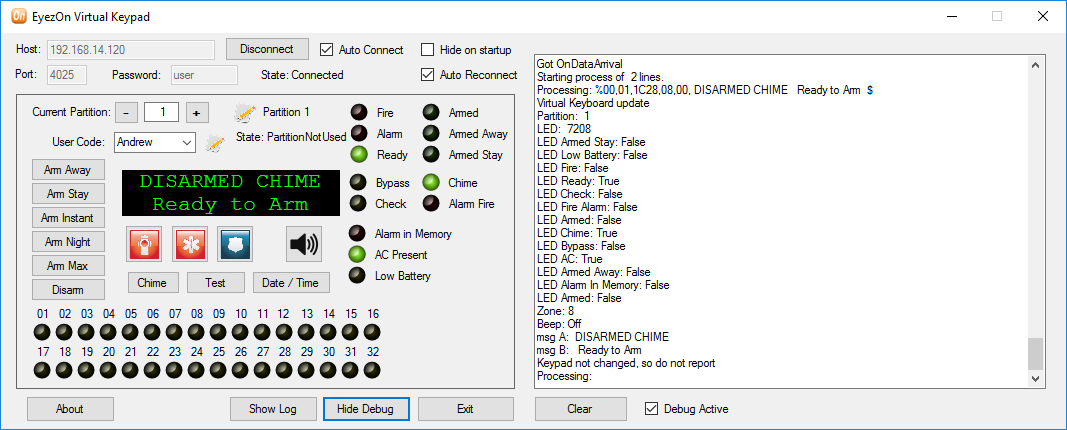

- Main window showing debug.png (53.09 KiB) Viewed 17450 times
Re: .Net EnvisaLink class and Windows Virtual Keypad app
It will also store the partition, users and zones which you can add / edit. This is also useful as the text is used in the debug and the logging.
- Attachments
-
- Edit Zone.png (2.61 KiB) Viewed 17450 times
-
- Edit user.png (3.17 KiB) Viewed 17450 times
-
- Edit Partition.png (2.61 KiB) Viewed 17450 times
Re: .Net EnvisaLink class and Windows Virtual Keypad app

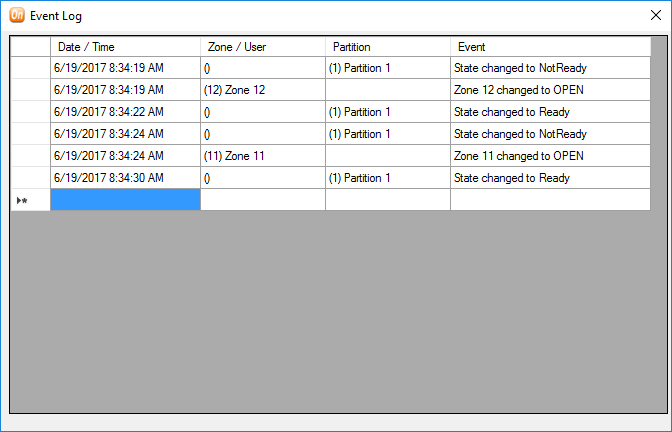

In addition there is also a separate window that shows the log of events.
- Attachments
-
- Log view.png (14.59 KiB) Viewed 17450 times
Re: .Net EnvisaLink class and Windows Virtual Keypad app
Here's the .NET class.... no docs on this yet until I upload to SourceForge or somewhere.
- Attachments
-
- EyezOn Class.png (13.31 KiB) Viewed 17450 times
Re: .Net EnvisaLink class and Windows Virtual Keypad app
Thanks for the reply and information. Looks intriguing.
Edit tried to use it. No luck - will not connect. This is obviously all on the local network.
Making socket connect to Port 4025 on host: 1.1.1.1XX
Socket connect
Got OnDataArrival
Starting process of 2 lines.
Processing: 5053CD
Processing: Got OnDataArrival
Starting process of 2 lines.
Processing: 5052CC
Processing: Socket has been dropped
Setting state to: Disconnected from state: Connecting
EVENT: State updated event. Old State: Connecting - New State: Disconnected
Edit tried to use it. No luck - will not connect. This is obviously all on the local network.
Making socket connect to Port 4025 on host: 1.1.1.1XX
Socket connect
Got OnDataArrival
Starting process of 2 lines.
Processing: 5053CD
Processing: Got OnDataArrival
Starting process of 2 lines.
Processing: 5052CC
Processing: Socket has been dropped
Setting state to: Disconnected from state: Connecting
EVENT: State updated event. Old State: Connecting - New State: Disconnected
-
- Posts: 2
- Joined: Tue Jul 04, 2017 10:21 am
Re: .Net EnvisaLink class and Windows Virtual Keypad app
Skippy76,
Do you have the full vs project i can download. The link is just for an msi.
Thanks!
Do you have the full vs project i can download. The link is just for an msi.
Thanks!
Re: .Net EnvisaLink class and Windows Virtual Keypad app
Sure, I am travelling at present though. Will get back to you next week.
-
- Posts: 4
- Joined: Wed Sep 16, 2015 12:20 am
Re: .Net EnvisaLink class and Windows Virtual Keypad app
Would you be up for posting the project on Github. I'm writing something in Lua and would appreciate any insights you have in your VB code. Thx
