DSC1555mx wiring

[Napoleon]

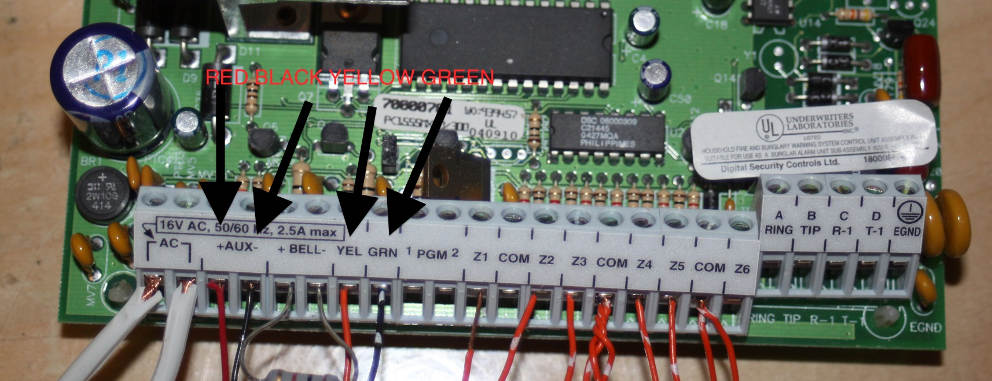

On all the installation diagrams for installing envisalink on the DSC 1555mx board, it shows black green red and yellow However, that is not consistent with my module or any pictures posted online of the actual 1555mx board which only have yellow and green. Do I use the aux+- slots in their place? Much appreciated

[smyers119]

Yes
