Standoff Dimensions needed for EVL-3

[Poolman]

Does anyone have mechanical dimensions for the PCB so I can waterjet myself a board mount?

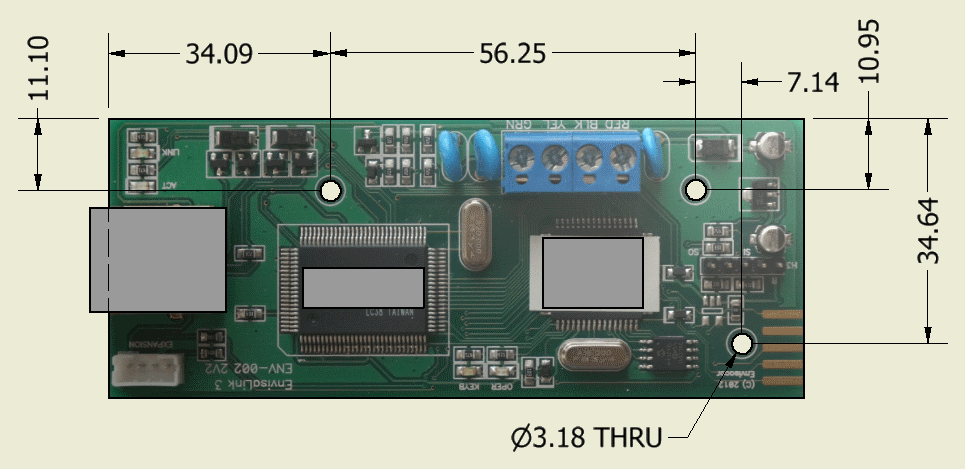

edit: Using my camera, I was able to come up with rough dimensions, see attached. Dims are in mm.


Let me know if anyone can confirm these numbers.

[K-Man]

The upper two holes are parallel to each other. From my measurements the vertical distance (y) from the bottom hole to the top two is 25.50mm.

The distance from right-most hole to the next left hole, in the x direction, is 6.98mm.

and the x distance from the right-most hole to the left-most hole is 62.86mm

and I have access to some pretty precise drawings
